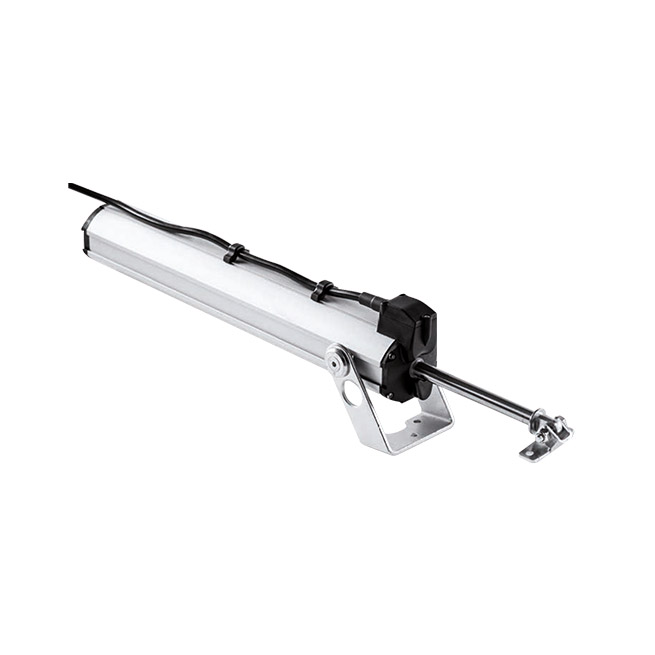

- Rigid rod linear electric operator with high resistance to peak loads
- Operation with 230V AC 50Hz power supply
- Compliant with the relevant European Directives
- Equipped with limit switches and relays for parallel connection
- Built-in thermal protection
- Available color: silver anodized
- Complete with fixing accessories
Models e Codes
| Code | Model | Description |
| 2700292 | D8-200 | D8 Fce – 200mm – 500N – 175W – IP55 – Silver |
| 2700293 | D8-300 | D8 Fce – 300mm – 500N – 175W – IP55 – Silver |
| 2700297 | D8-400 | D8 Fce – 400mm – 500N – 175W – IP55 – Silver |
Technical Features
| POWER | Max thrust 300N – Max traction 300N |
| VOLTAGE | 230V AC 50HZ |
| LIMIT SWITCH OPENING/CLOSING | Microswitch |
| PROTECTION DEGREE | IP55 |
| OPERATING TEMPERATURE | -10/+60° C |
| CABLE | PVD Nero |
| CERTIFICATIONS | CE – VDE |

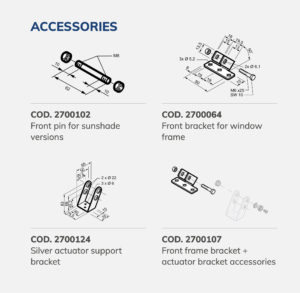

Extra accessories
Learn more
