10 December 2020

Garage overhead door automation installation: VDS Automation will take care of it

Are you thinking about a garage overhead door automation​ ​for your house but do not know where to start?

You are in the right place. We will show you how​​ overhead doors automation of VDS Automation allows you to automate access to the garage and more.

Different models are designed to meet all safety and energy saving needs suitable for both private houses and residence.

Garage overhead door automation: VDS Automation products

Overhead door automations are the best solution for anyone who want to return home quickly and easily, without dealing with bad weather.

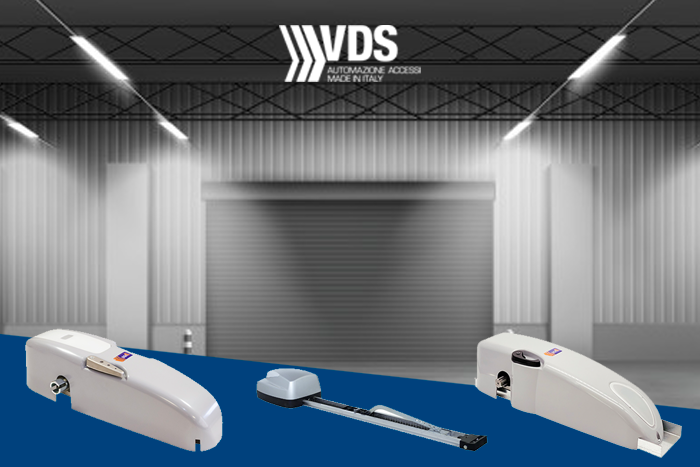

Thanks to its great experience in the automation industry, VDS Automation has designed three motor models suitable to any type of need.

The first engine we want to show you is:

  • UTILE – Electromechanical operator 24V : This type of motor is suitable for both private houses and residences because of its power and resistance. It has the following features:
    • Max weight 100 kg
    • Thrust from 700N up to 1000N
    • Operator with encoder
    • Suitable for sectional door and counterweight overhead door (with curved arm)
    • Guide in galvanized iron or aluminum with preassembled chain or belt
    • Lithium grease lubrication of mechanical parts against corrosion, oxidation and rust
  • High-performance electric motor
    • Very quiet operation
    • Limit switches/encoder management
    • Easy programming software
    • Control unit with radio receiver and aerial
    • Anti-squashing system reverse (en 12453)
    • Electronictorque control
    • Slowing down function (en12453)
    • Power supply 24Vdc

The second engine is:

  • BASIC 09 – Electromechanical Operator 230V-24V : This type of motor is recommended for Semi-intensive use 230 VAC or INTENSIVE 24VDC with a frequency of use 50% (230VAC) – 80% (24VDC). By using this type, you will have a 15 seconds overhead door opening and an almost total absence of sounds during the opening. For the more experienced we have listed additional features:
    • Max surface 10 mq
  • Irrevesible electromechanical operator
    • Steel and bronze gears obtained from solid
    • Mechanical parts lubricated with lithium grease against oxidation corrosion and rust
    • High performance electric motor
    • Operator 24Vdc with encoder
    • Operator 230Vac with optional encoder
    • Start button placed on the cover
    • Die-cast lever release device
    • Available with and without control unit
    • Control unit with radio receiver and aerial
    • Easy programming software
    • Electronic torque control
    • Anti-squashing system (en 12453)
    • Slowing down function (en 12453)
    • Courtesy light
    • Power Supply 230Vac – 24Vdc with encoder



  • BASIC ON – Electromechanical Operator 230V : This type of motor is recommended for Semi-intensive use 230 VAC or INTENSIVE 24VDC with a frequency of use 50% (230VAC) – 80% (24VDC).  By using this type, you will have a 15 seconds overhead door opening and an almost total absence of sounds during the opening. The features of this engine are listed below:
    • Max surface 10mq with 1 motor
    • Irrevesible electromechanical operator
    • Suitable for 2 leaves overhead doors
    • Steel and bronze gears obtained from solid
    • Very quiet operation
    • Lubricated with lithium grease against oxidation corrosion and rust
    • High performance electric motor
    • Operator 230V with optional encoder
    • Release device with die-cast lever
    • Available with and without control unit
    • Control unit with radio receiver and aerial
    • Easy programming software
    • Electronictorque control
    • Anti-squashing system (en 12453)
    • Slowing down function (en 12453)
    • Courtesy light
    • Power supply 230V

For VDS Automation safety is the most important thing, for this reason, all our devices are equipped with anti-crushing device,​ ​courtesy light and manual release. Manual release is essential in the absence of electricity.

Design and safety​ as a priority with excellent prices … obviously Made in Italy!

Why automate the garage overhead door?

That’s easy. In the blink of an eye, you can improve the quality of your days. It seems little, but as soon as you have your automatic garage door, you will not be able to do without it.

Try it to believe.

Garage overhead door automation: VDS Automation is suitable for you.

VDS Automation has been in the automation industry for over thirty years; we will understand your needs and transform them into your dream gate.

Contact our assistance center ​to list all your requests and doubts about it, or use our direct contacts by calling +39 085 4971946 or by sending an email to info@vdsautomation.com.

VDS Automation: always on our customers’ side!
